The Gonzalez & Jacobson architectural studio, together with its team of architects in Malaga, in each of its projects, proposes and presents in the respective plans the works to be carried out. They also present and develop the improvements or changes that are being developed in them and on them, freehand.

Attached are drawings of plans with various technical details for the construction and execution of works.

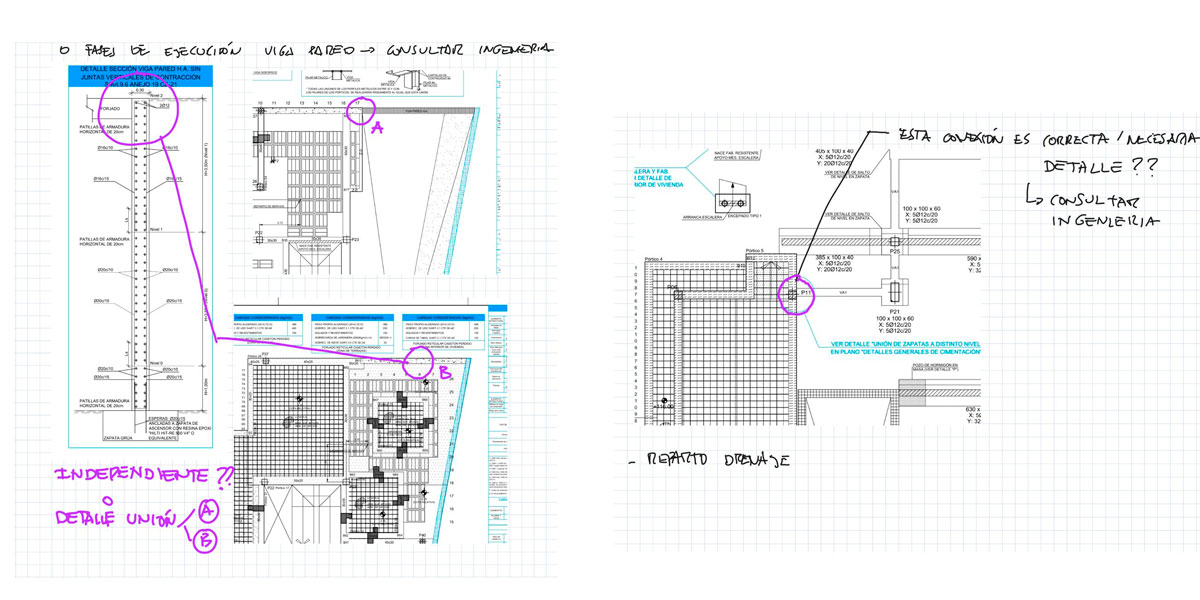

Detail of a Beam and Connections

• • A technical plan is presented that shows how a reinforced concrete beam is built without vertical contraction joints.
  • The beam connects two areas marked as “A” and “B”. These areas require verification of whether they are independent structures or if they need a specific detail for their union.
  • The beam reinforcement is composed of steel bars (horizontal and vertical reinforcement pins) that help support loads
  • Footwear Connection
  • This plan shows the drainage must be checked in this area to avoid future problems.

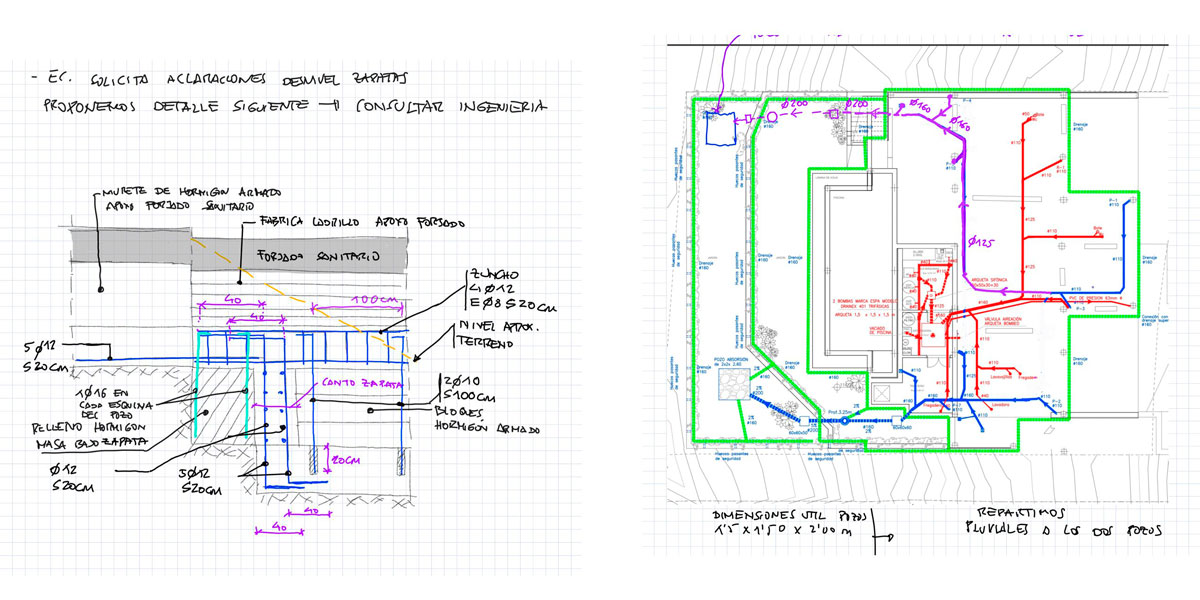

Proposed Solution for Footings

• • Here is a possible solution for footings at different levels:
    • A steel-reinforced concrete footing.
    • A concrete fill to level the ground and improve stability.
    • Additional corner reinforcements with thicker steel bars to prevent deformation.
  • Measurements and references are also included to guide construction.
  • Another drawing shows a connection between two footings, which are structural elements in the foundation. Footings are used to distribute the loads from the building to the ground.
  • A question is raised as to whether the connection between these footings at different levels is adequate or needs a more detailed design.
  • In addition, it is mentioned that drainage should be checked in this area to avoid future problems.
